Single needle quilting machine

Brief Introduction

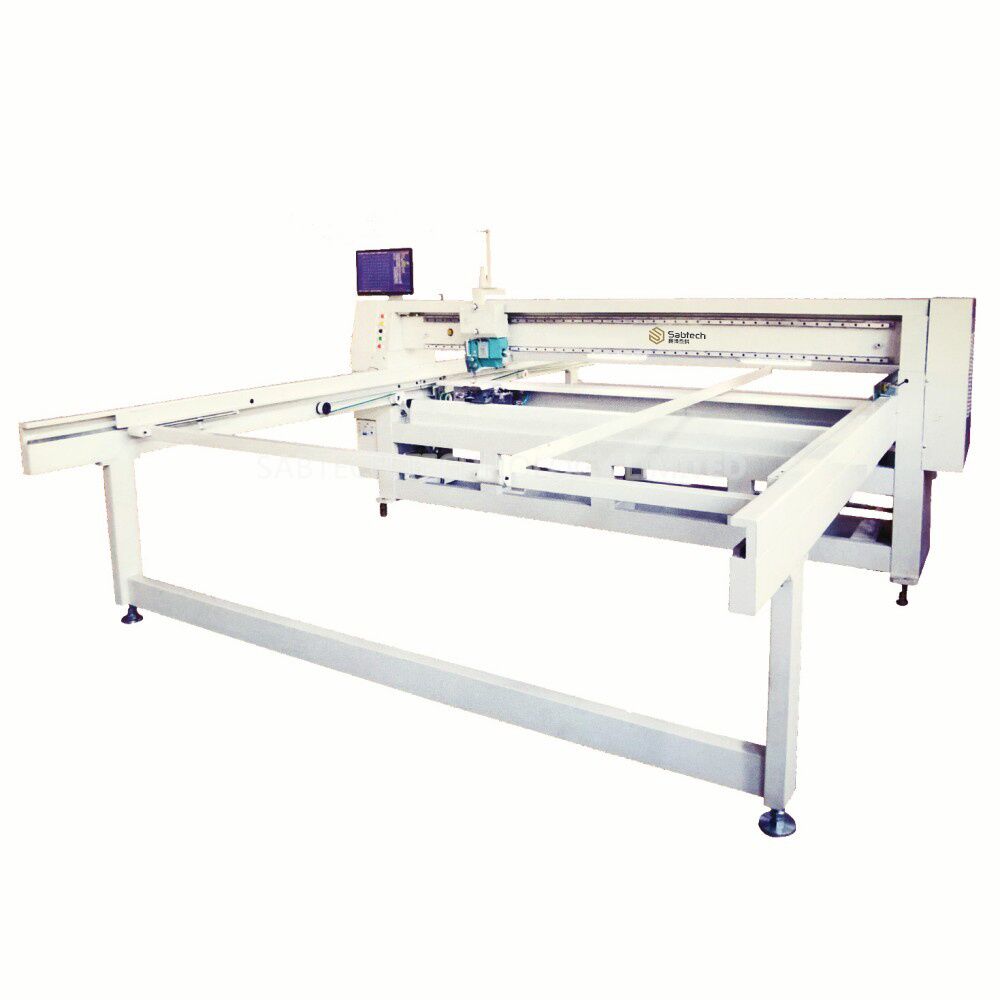

Normal model

This single needle quilting machine is suitable for quilting quilt, bedspread, curtain, clothing and other patterns.Foam, leather and so on can also be quilted.

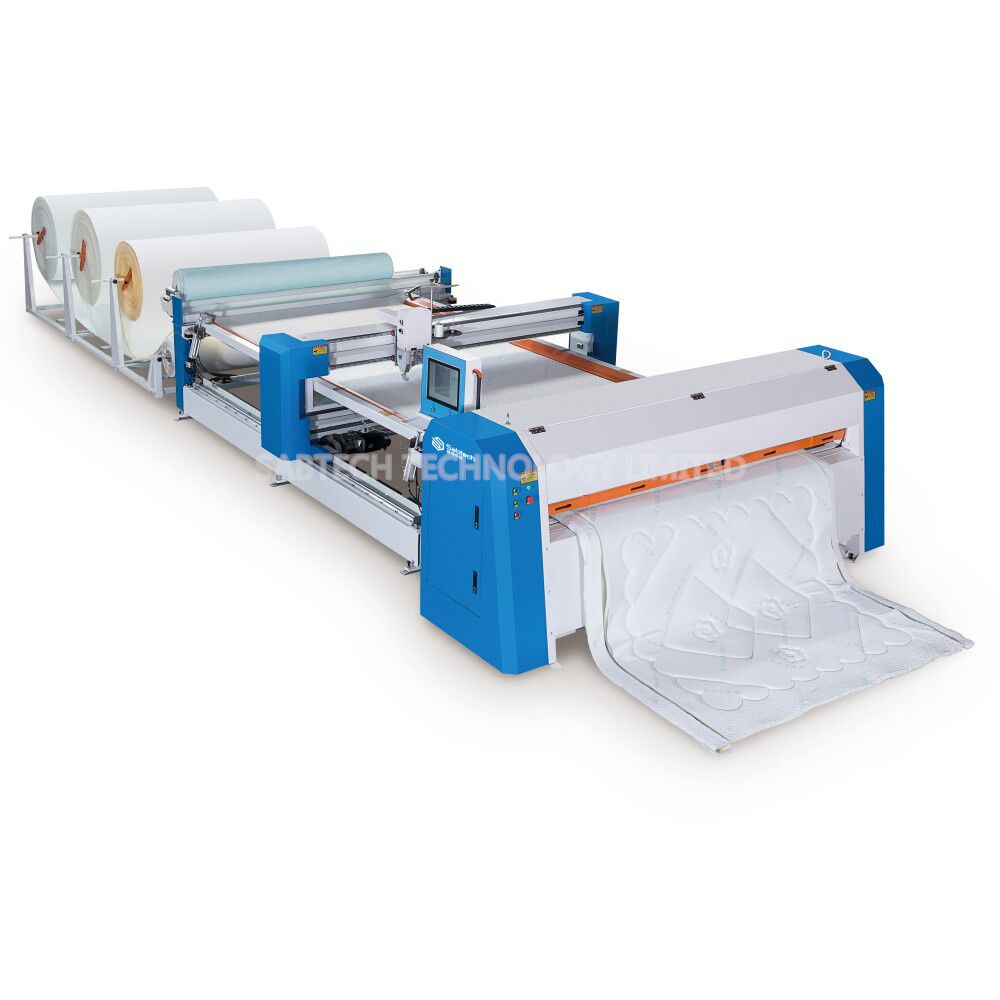

Full-automatic model

This single needle quilting machine is a full-automatic high-speed and high-precision computerized quilting machine with automatic thread trimming, and it is a sewing equipment for making various quilts and cushion covers. The sewing efficiency is high, the quilted patterns are beautiful, and the graphics are fine. You can make your own template and import it into your computer. The machine adopts servo control system, which improves the running speed and sewing precision. This product has been upgraded by our engineers to extend the service life of parts at high speed, reduce noise and improve the stability of machine operation.

Main Technical Specification

Normal model

Full-automatic model

Machine Highlights

Normal model

• Enlargement and reduction of the pattern: the pattern can be expanded/reduced from 50-200% horizontally/vertically at the same time.
• Frame drive: no quilting, but the function that the shelf moves along with the quilting route.
• Return to the origin: use the button of the origin to return to the starting point of the pattern.
• Automatic repair: During the operation process, the quilted part can be repaired backwards without having to repair the finished product.
• Skill efficiency: due to the use of rotary hook, it can run at high speed and improve work efficiency.
• Structure: Using AC motor and digital control mode to work, the accuracy of the pattern is very high.
• Safety devices: computers, motors, machines, etc., will automatically shut down when abnormal phenomena occur, and the fault content will appear on the screen at the same time.
•  Memory function: When the power is cut off or cut off during the operation, when the power is turned on again, it can continue to run the quilting content of the previous paragraph.

Full-automatic model

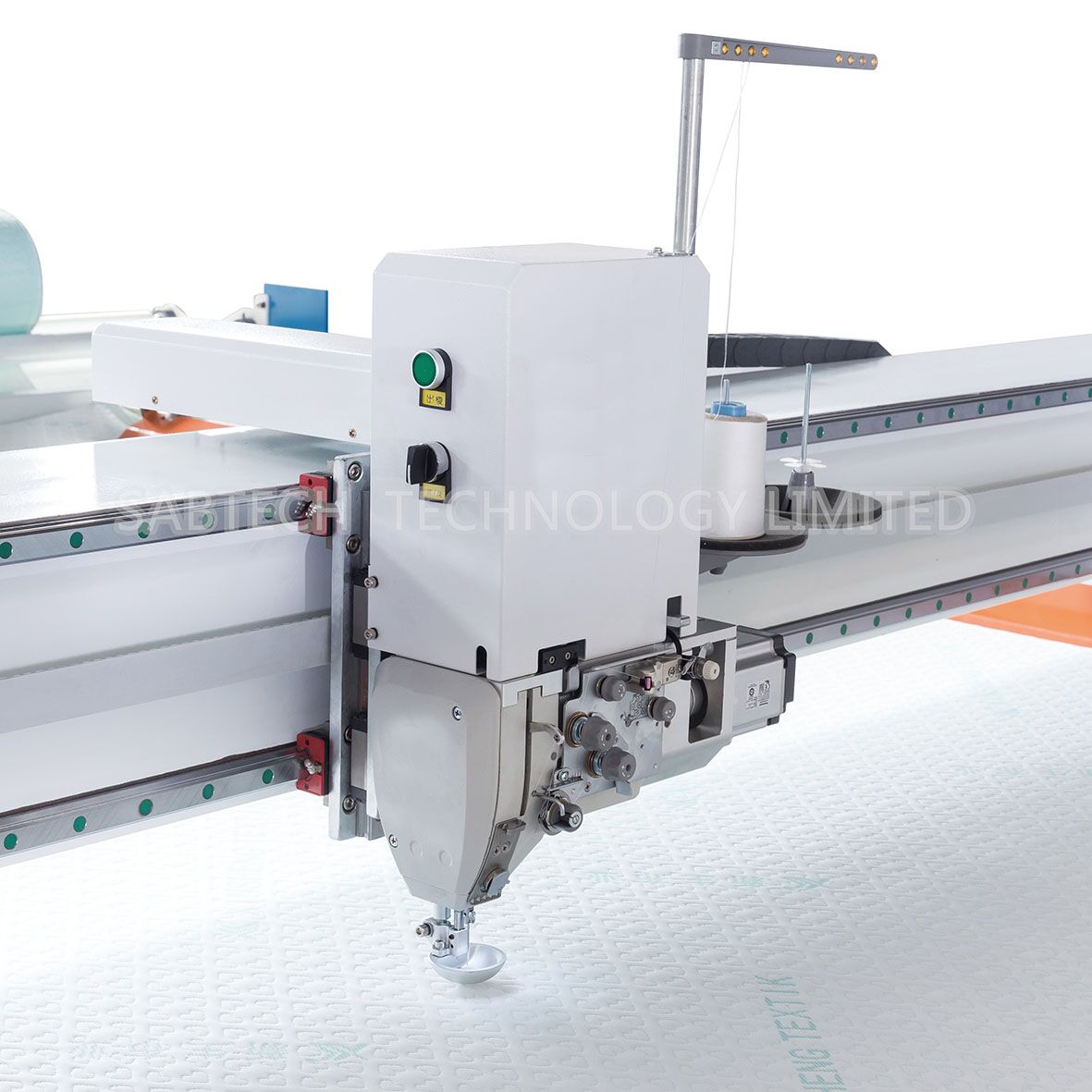

• The imported machine head is adopted to improve the sewing speed and stability, and the maximum machine speed can reach 3000 revolutions per minute.
• Using imported large spinning shuttle, any step of the fiber seam automatic breaking detection, screen arbitrary point embroidery.
• Press pin can be adjusted according to material thickness.
• Computer system control, can precisely stitch a variety of complex patterns.
• 360° independent flower jumping function, super capacity memory system, flower version storage of more than 100,000.
• It has the functions of output counting, pattern effect display, processing track display, automatic wire cutting, automatic shutdown, etc.
• Data real-time protection, after the sudden power outage still continue to work in the original position.
• The pattern is spun and stitched at any point, and can be fixed automatically after the thread is broken.
• Imported servo motor control, higher precision, better stability.
• Computer professional printing software,CAD method drawing arbitrary modification and copy.
• Edge knife cutting, the knife can automatically rise and fall, the size of the processing size can be in place in one step, without additional cutting.
• Automatic feeding, cutting, more time saving.
