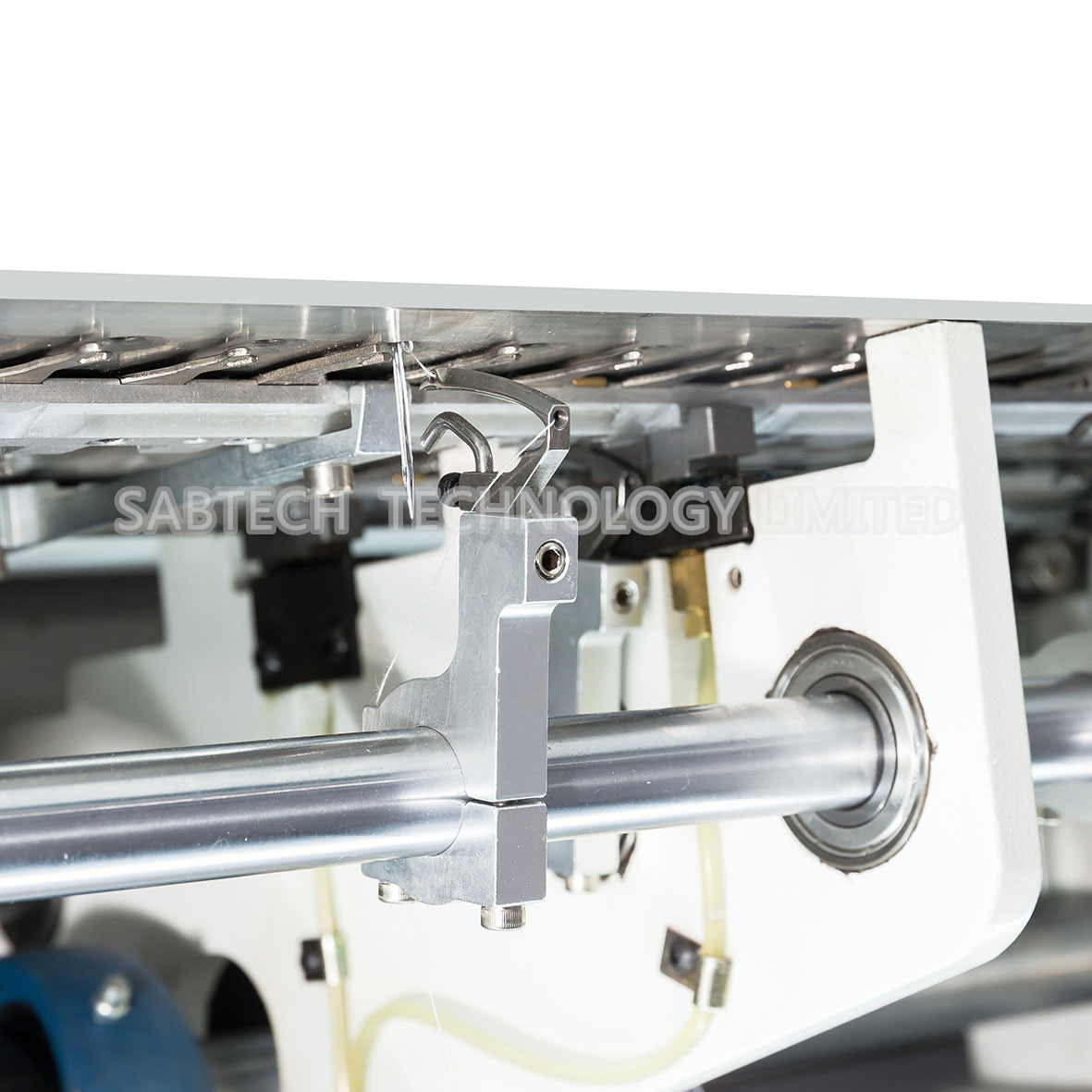

Multi needle quilting machine

Brief Introduction

Multi needle quilting machine is a home textile equipment that integrates automatic feeding, cloth pulling, quilting and cutting. Mainly used for mass production of home textile quilting. Commonly used in quilting leather sofa cushions, mattresses, cushions, car leather cushions, floor mats, blankets, thin quilts, insulation quilts, etc.

Overview Of The Product

Multi needle quilting machine consists of the following parts:

• Display screen
• Threading area
• Fabric shelf
• Thread frame
• Foam frame
• Standing platform


Main Technical Specification

Multi needle quilting machine(Shuttleless)

Parameter Name	Data
Oveall Size	5400*1560*2050mm
Overall Weight	5500KGS
Spindle Speed	500-1200RPM
Output	60-300m/h
Stitch	3-8mm
Model of Needle	24/180, 23/160, 22/140, 21/130
Space between needle rows	(50.8,76.2,127)5", (76.2,76.2,152.4)6"
Space between needles	25.4mm
X Stroke	304.8mm
Quilt Width	2450mm
Quilting Thickness	≤80mm
Voltage(AC)	380V/220V, 50HZ/60HZ

Multi needle quilting machine(shuttle)

Model	AFU-4YS (64")	AFU-4YS (96")	AFU-4YS (128")
Oveall Size	3600*1250*1780mm	4700*1370*1780mm	5590*1370*1780mm
Overall Weight	2800KGS	3500KGS	3800KGS
Quit width	1650	2400	3300
Space between needle rows	76.2	76.2+76.2	76.2+76.2
Space between needles	25.4	25.4	25.4
X stroke	203.2	304.8	304.8
Quilting thickness	≤ 30mm	≤ 30mm	≤ 30mm
Stitch	2-7	2-7	2-7
Output(per hour)	60-150m	60-130m	60-130m
Pin type	14#-21#	14#-21#	14#-21#
Spindle speed	500-1100 (RPM)	500-1100 (RPM)	500-1100 (RPM)
Voltage(AC)	380V/220V 50HZ/60HZ	380V/220V 50HZ/60HZ	380V/220V 50HZ/60HZ
Power	4 kw	4.5kw	5.5 kw

Machine Highlights

Multi needle quilting machine(shuttleless)

• The machine performance, speed, and output all improve thanks to the sophisticated computer control system and production process of the quilting machine.
• Both the needle row and the platen use a camless double rocker motion technology that requires no refueling and prevents fabric oil pollution.
• Innovative infrared technology can detect bottom thread and face thread breakage and automatically halt the process when it does.
• The maximum speed that can be controlled by computer numerical control is 1200 rpm, with an adjustable needle distance of 3 to 8 mm.
• It is capable of numerous independent stitching across stages and quilting in all directions.
• New generation computer control system, high quilting precision, no need to modify the pattern too much.
• Pattern editing uses the accurate and user-friendly CAD sketching technology.
• The duration of the quilting can be adjusted, and when it is finished, it can automatically stop and return to the starting place.
• Makes your operation safer. If your hand is near it, the infrared sensor will stop immediately.

Multi needle quilting machine(Shuttle)

• The advanced computer control system and machinery manufacturing process ensure that the noise of the machine is very small.
• Needle row adopts needle bar frame structure, no need to add oil, thus avoiding the phenomenon of oil pollution of fabric. This structure is firm and not easy to damage, and the maintenance cost is low. The main shaft frequency control device and saddle frame adopt servo-driven equipment.
• The transmission arm of needle row and pressure plate is made of special aluminum with special treatment on the surface, which makes the machine more stable in operation and achieves the effect of less vibration. The mechanical part of the equipment has been upgraded and optimized in design and process. The whole machine body chassis is weighted to ensure the machine is more stable and durable.
• Computer numerical control speed, needle speed up to 1100 rpm, stitch length 2-7mm arbitrary settings.
• The multi needle quiting machine can do 360° any fiber stitch and unlimited independent pattern spinning stitch.
• The pattern compensation function can effectively solve the problem of pattern variation due to thickening of quilting material.
• Advanced and practical thread breakage detection technology and automatic thread breakage stop function. Infrared sensor, making your operation safer.
