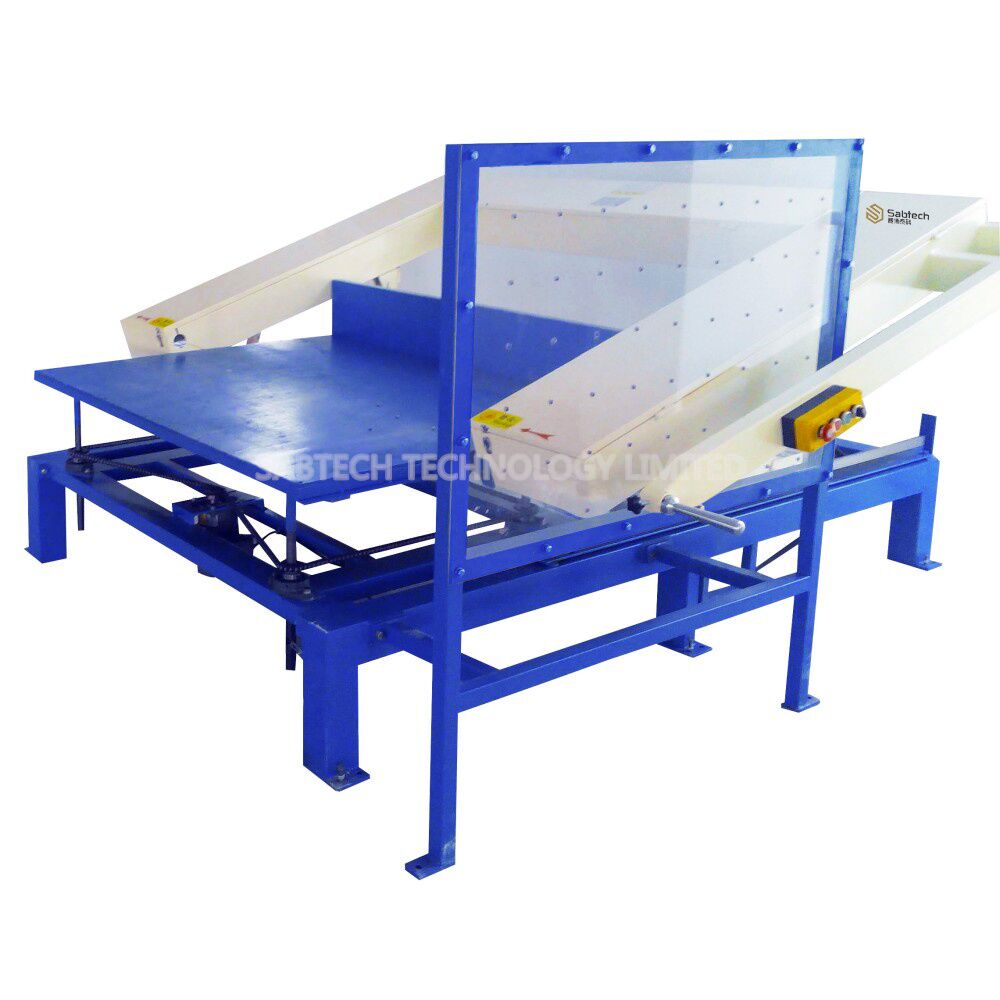

Manually foam contour cutting machine

Brief Introduction

Manually foam contour cutting machine is mainly used for processing and slicing special-shaped foam. Using the prepared molds, the processing of various products such as cylinders, arcs, pillows, and cushions can be completed. It is suitable for the manufacture of foam furniture and the processing of daily necessities. It is a foam product processing machine with a wide range of uses.

Overview Of The Product

Manually foam contour cutting machine consists of the following parts:

• This machine is composed of upper beam column, base, worktable guide rail mechanism, lifting worktable, motor drive mechanism, blade belt inclination mechanism, blade wheel mechanism, mold installation mechanism, blade wheel safety cover and other main components.
• The upper beam, column and lower base are welded by channel steel. The cutter wheel mechanism is installed on the same plane of this component simultaneously.
• The suction platform is composed of square frame and aluminum plywood. There is a moving screw and a sliding seat under the platform, which supports the worktable to move up and down to reach the cutting height.
• The blade belt tension adjustment mechanism is an unloading device used to adjust the blade belt tension and install and remove the blade belt. When in use, the tension force of the spring can be adjusted by cooperating with the spring compression nut in the component.
• The entire worktable moves up and down through the gear motor to drive the sprocket to move up and down. The tool holder moves around the model with a cutting motion through the profiling pins.

Main Technical Specification

Machine Highlights

• Is made to accurately and precisely cut foam materials into a variety of shapes and sizes.
• It has a superior cutting blade that guarantees precise cuts and minimizes the need for further finishing work.
• Manually operated, simple to control and modify to meet the precise needs of the task.
• Suitable for cutting a variety of foam materials, such as polyurethane and polystyrene foam, as well as other materials that are comparable.
• Is perfect for usage in small production facilities or workshops since it is portable and simple to set up.
• Designed with safety elements that guarantee operators have a secure working environment and that accidents and injuries are prevented.
• The machine is strong and long-lasting, with premium parts that guarantee dependable operation and little maintenance.
• It is the best option for firms trying to increase production efficiency and cut expenses since it is simple to use and requires no training.
• The process is straightforward, and the cutting is swift and accurate.
• The machine’s primary frame has an acceptable structural design.
• Smooth motion, manual operation, and simple adjustment.
