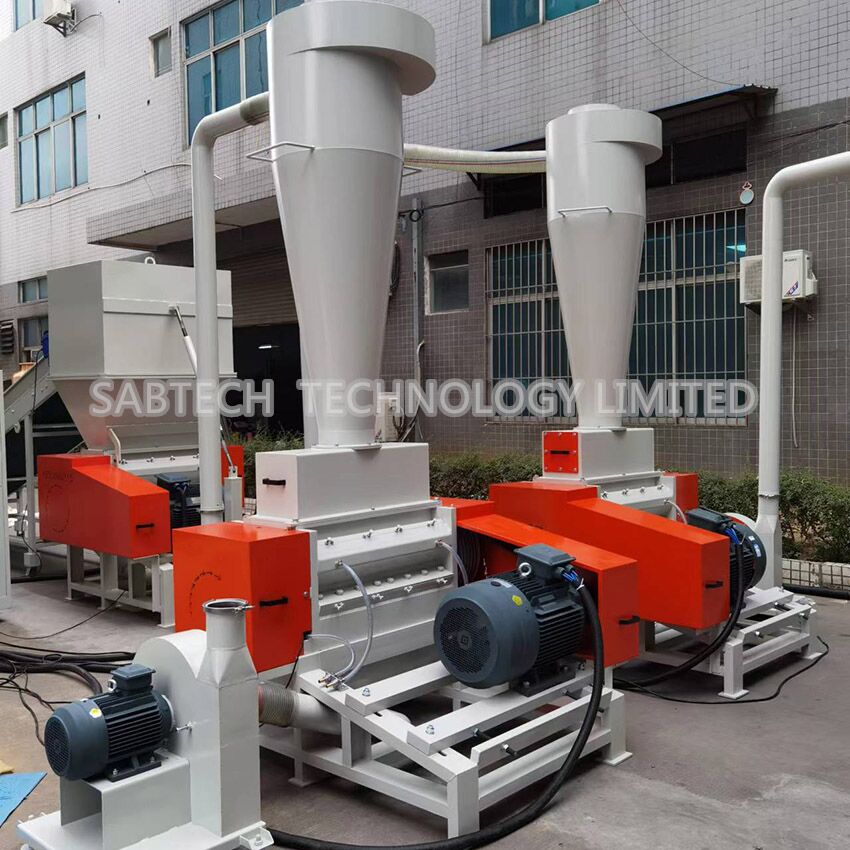

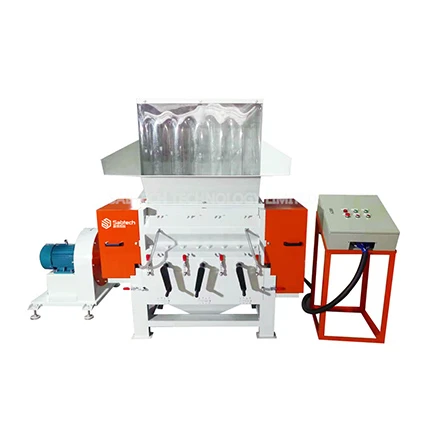

Foam shredder machine

Brief Introduction

Foam shredder machine is suitable for crushing all kinds of foam scraps. It can shred ordinary foam, slow rebound foam, regenerated foams, etc. The shred foam particles can be used as sofa cushions, stuffing for toys or rebonded foam. The size of the finished product can be adjusted by changing the mesh screen. Renewable machines and other equipment are combined into a production line. The blades of the important parts of the machine are processed by heat treatment of fine steel, which has the characteristics of good hardness and wear resistance, and strong impact resistance. The service life of the blade is extended, and it is suitable for long-term mass production.

Main Technical Specification

Model	SAB-49B	SAB-3878AT	SAB-42100BT
Capacity	180-400kg /h	400-600kg/h	800-1500kg/h
lnlets Size	520*290mm	450*780mm	800*1020mm
Motor Power	30KW	37KW	45KW
Rotary Cutter	3 Line*2PC	3 Line*2PC	3 line*4PC
Stationary Cutter	2 Line*1PC	4 Line*2PC	4 Line*2PC
Sieve Size	5-50mm 1PC provided	5-50mm 1PC provided	5-50mm 1PC provided

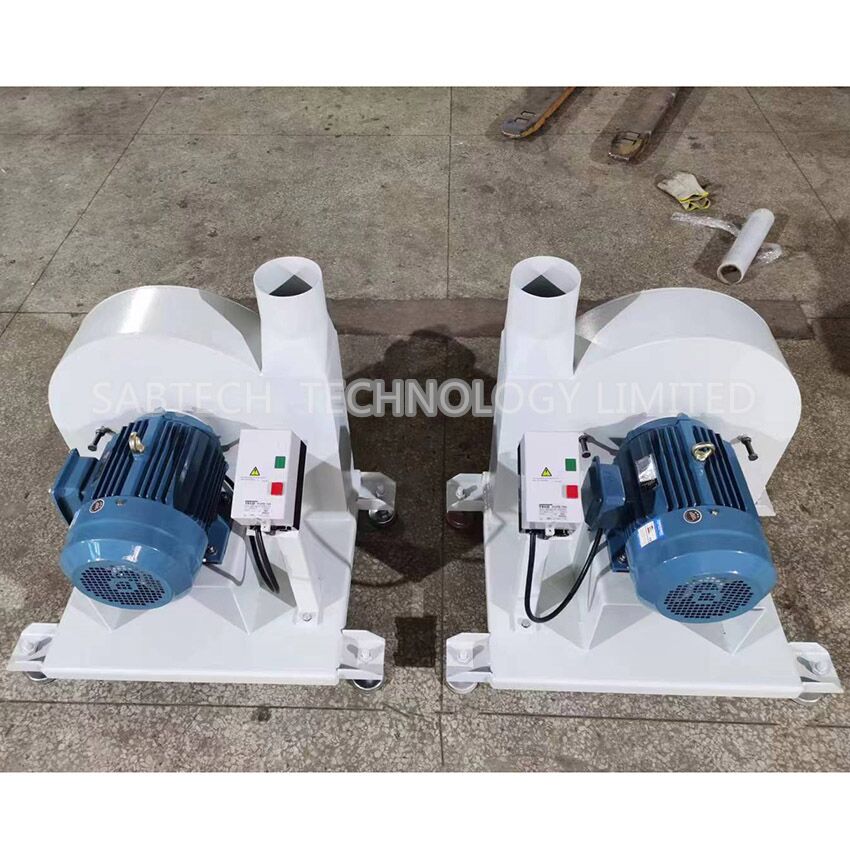

Blower	5.5KW	7.5KW	7.5kw
Size	1300*1000*1700mm	1700*1900*1900mm	1900*2200*2200m
Weight	900KGS	2600KGS	340OKGS

Machine Highlights

• It can shred EPDM blocks, ETPU popcorn, EVA, TPR, PVC, TPV, TPU, PU, rubber sheets, shoe soles, shoe inspection, doors and windows and other materials, and the crushing size can reach 1mm. Compared with ordinary pulverizers with the same specification, the efficiency is 30-80% higher.
• Cloth sponge, pure cloth bust sponge, sponge skin, ordinary sponge latex sponge can be shredded to any particle, and insole foam can be shredded to 1 mm. Compared with ordinary pulverizers with the same specification motor, the efficiency is 30-80% higher.
• Special pulverizer for EPDM blocks designed in Japan: diameter 400, blade length 600, oblique knife type tungsten steel pineapple knife 18 rows*2 pieces, screen aperture 4.5 mm, motor 37kw, output up to 2000 kg/hour.

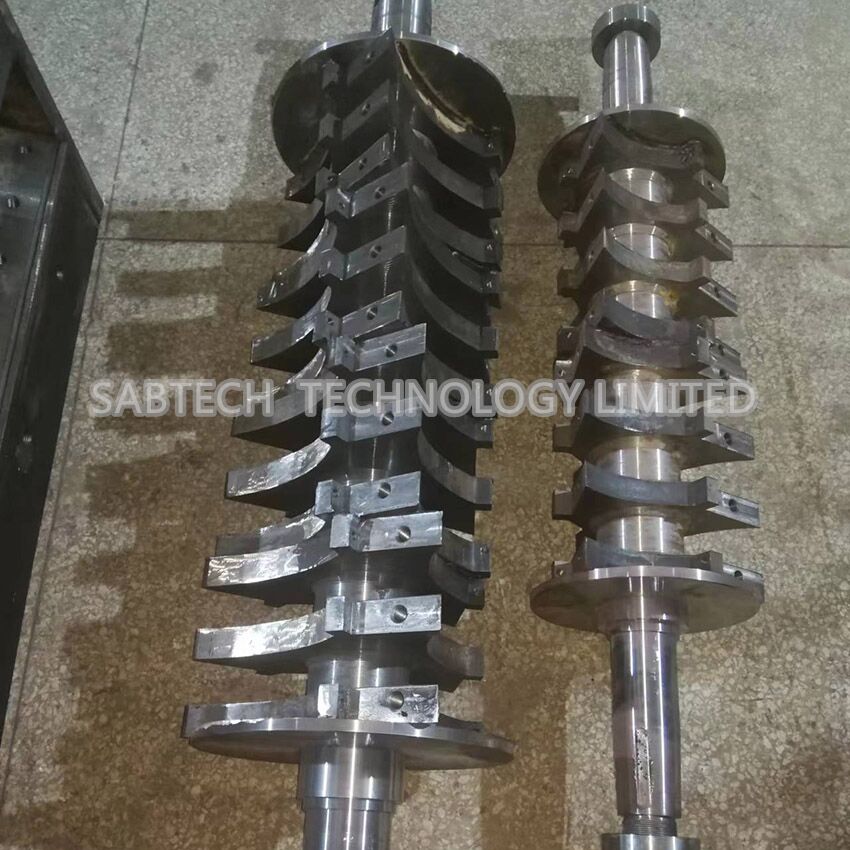

• Various types of shredding knives with imported Swedish/Japanese alloy blades.
• High-quality and high-configuration single/double-shaft slow-speed shredder unit designed by Germany and China Seiko.

How To Use Foam Shredder Machine

• The pulverizer and power unit should be installed firmly. If the pulverizer is fixed for a long time, it should be fixed on the cement foundation. If the pulverizer is a mobile operation, the unit should be installed on the base made of angle iron, and the power machine (diesel engine or electric motor) and the pulley of the pulverizer should be ensured. The slots are in the same plane of revolution.
• After the pulverizer is installed, check the fastening condition of the fasteners of each part, and tighten them if they are loose. At the same time, check whether the belt tightness is appropriate.
• Before starting the pulverizer, turn the rotor by hand to check whether the claws, hammers and rotor are flexible and reliable. Check for collisions in the shell. Check whether the rotation direction of the rotor is consistent with the direction indicated by the machine arrow. Check whether the lubrication status of the power machine and the pulverizer is good.
• Do not replace the pulley casually, in case the speed is too high to cause the shredding chamber to explode, or the speed is too low to affect the working efficiency of the grinder.
• After the pulverizer is started, it should be idling for 2~3 minutes first, and then start feeding if there is no abnormal phenomenon.
• Pay attention to the operation of the pulverizer at any time during work, and feed materials evenly to prevent clogging. Don’t overwork for long periods of time. If vibration, noise, excessive temperature of the bearing and body, or material spraying out are found, stop the machine immediately for inspection, and continue working after troubleshooting.
