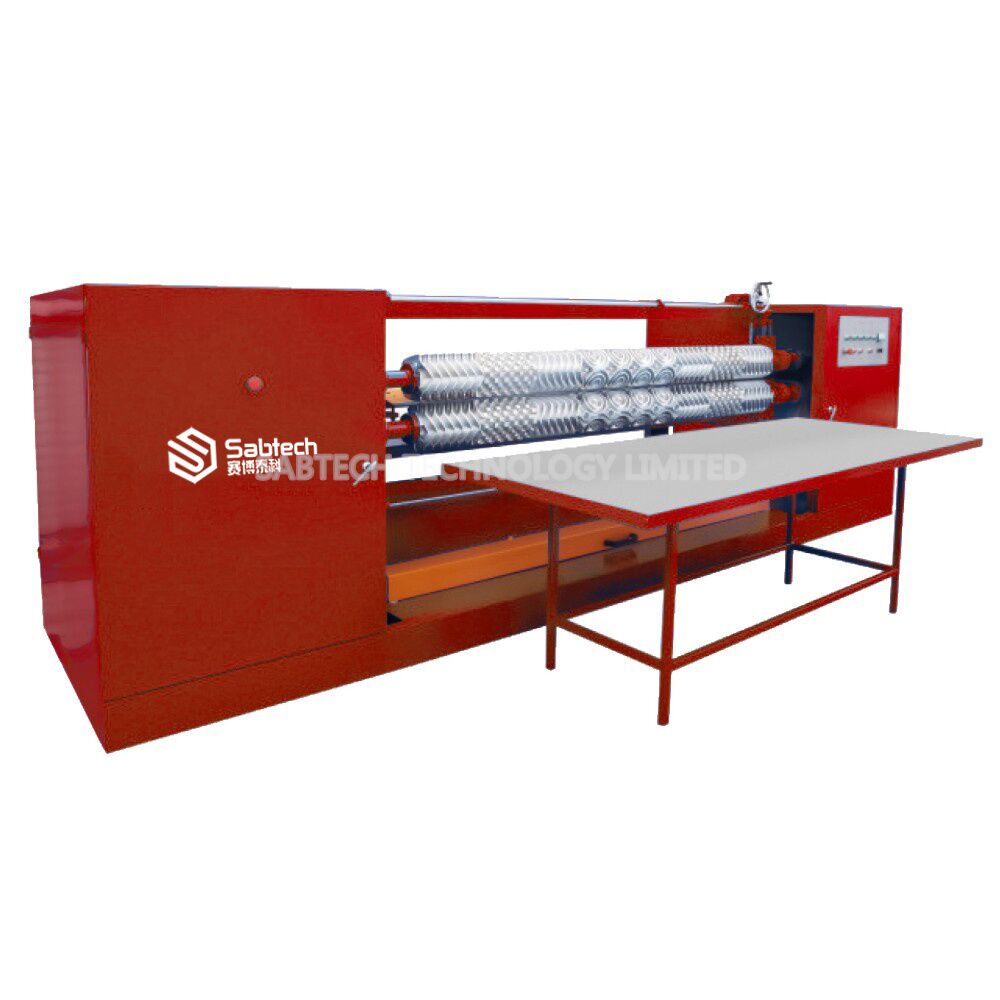

Foam profile cutting machine

Brief Introduction

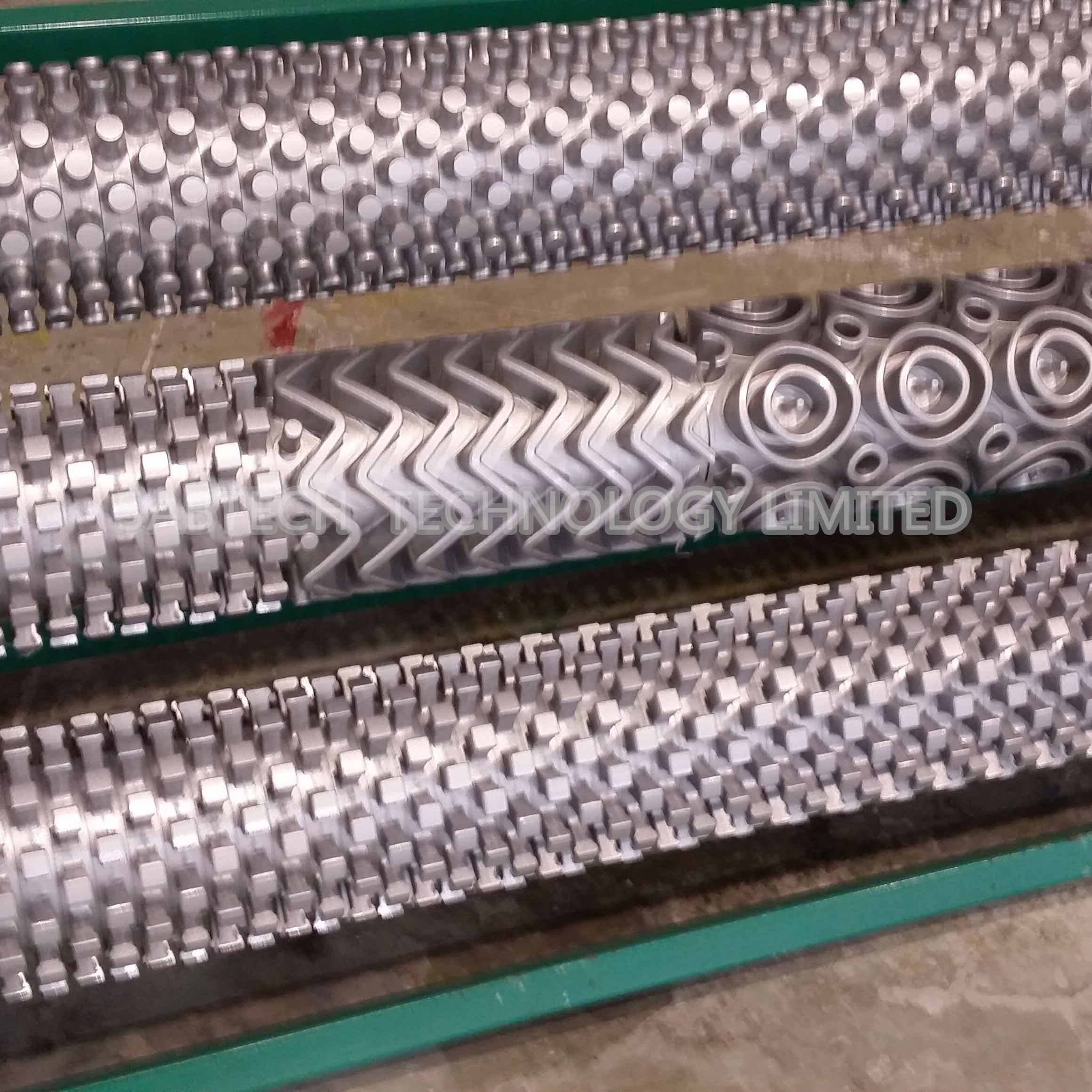

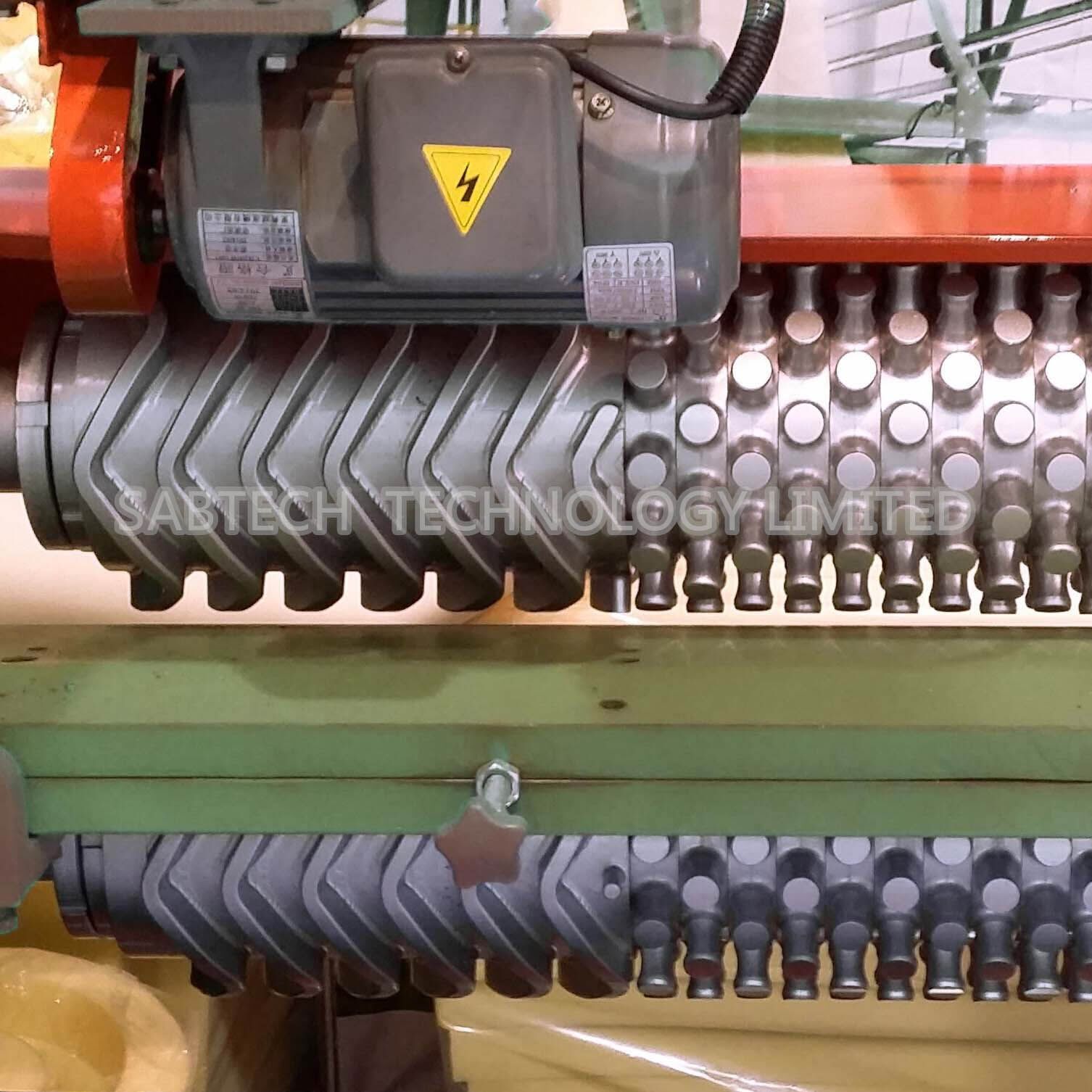

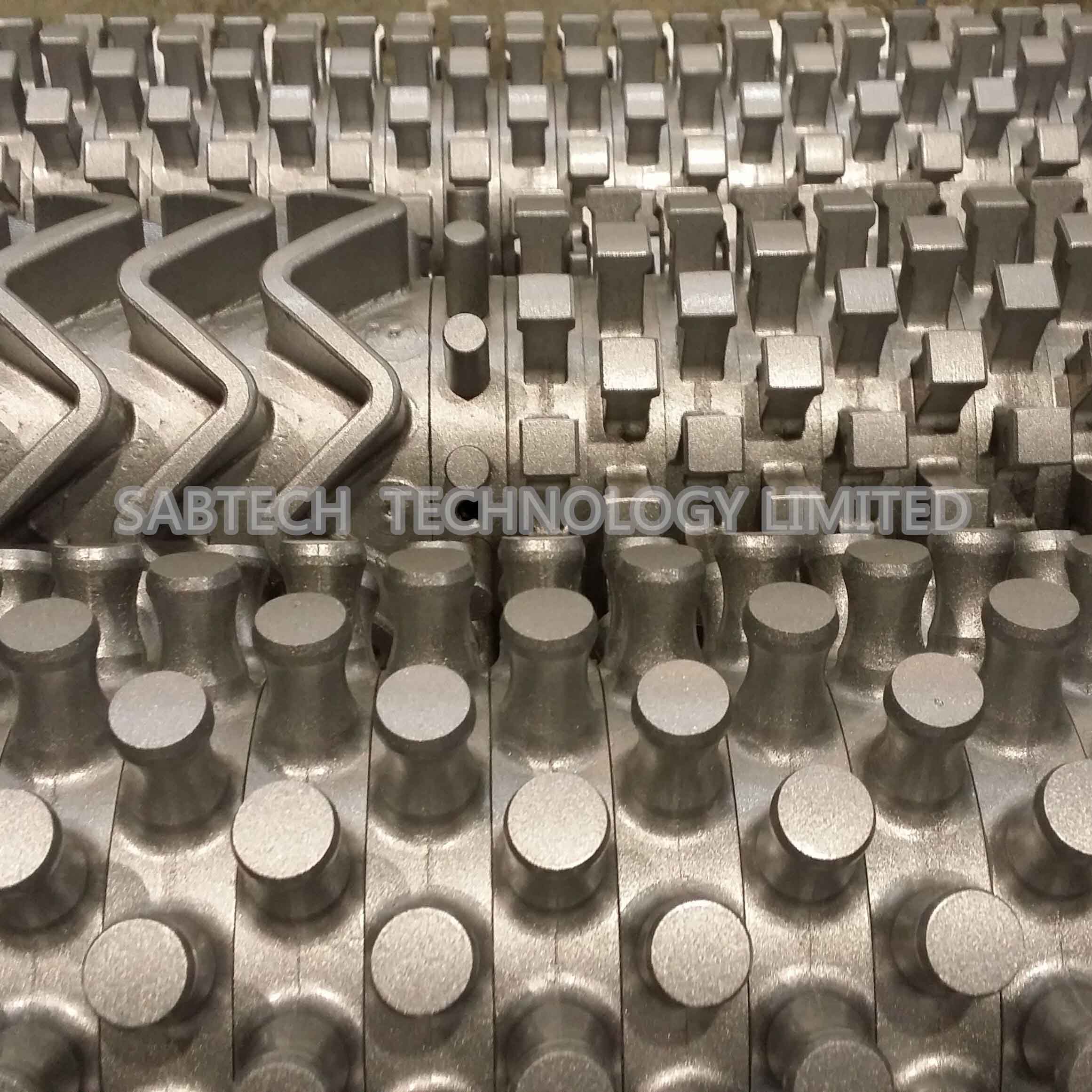

Foam profile cutting machine is a foam embossing and embossing cutting machine. It mainly cuts a piece of thick foam through a toothed pressure roller to produce two pieces of products with corresponding concave and convex shapes in wave shape or other pattern. Widely used in the production of mattress foam, car seat cushions, electronic packaging, health care products, precision instruments and other industries.

Main Technical Specification

Model	SAYX–1650	SAYX–2150
Profiling width max	W1650mm	W2150mm
Profiling pepth max	50mm	50mm
Profiling axletree turning speed(working)	0-25r/min	0-25r/min
Total power	10.74kw	10.74kw
Blade length	L8800*50*0.6mm	L9800*50*0.6mm
Cutting speed	0-25m/min	0-25m/min
Machine weight	2500kgs	3000kgs
External size	L4.2*W1.25*H1.55 m	L4.7*W1.25*H1.55 m

Machine Highlights

• Precision cutting: Equipped with high-precision cutting tools that can cut foam materials with accuracy and consistency. Ensures the final product has a smooth and even finish.
• Versatility: Can cut foam materials into different shapes and sizes, suitable for a wide range of applications.
• High-speed operation: Is capable of high-speed operation, which makes it ideal for large-scale production environments.
• Easy to use: Easy to operate, and require minimal training to use effectively. Is ideal for both experienced and novice users.
• Low maintenance requirements: Require minimal maintenance and can last for many years with proper care.
