This equipment is mainly used for large-scale continuous production of soft polyurethane foam.

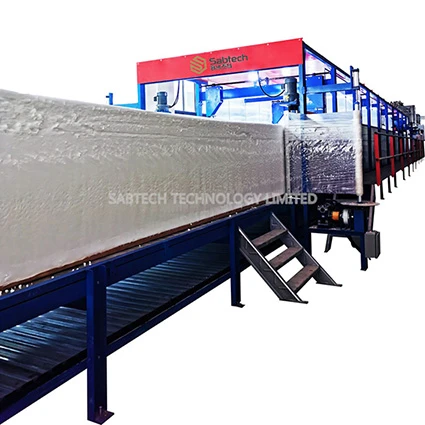

A polyurethane continuous foaming machine is a type of equipment used to produce polyurethane foam continuously. It is mainly used for large-scale continuous production of soft polyurethane foam.

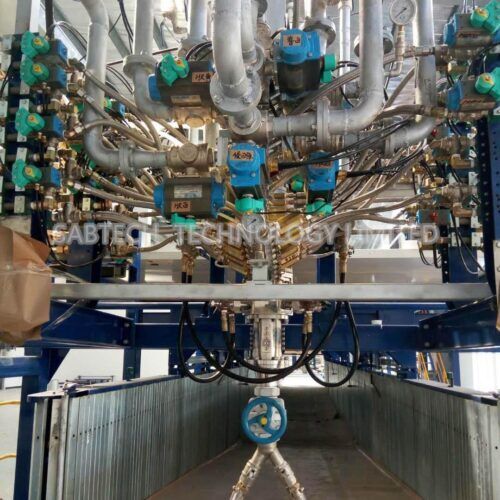

The machine mixes and pumps the liquid components of polyurethane foam, such as polyol and isocyanate, into a mixing head, where they are combined and then dispensed onto a moving conveyor or mold. As the polyurethane mixture flows out of the mixing head, it expands and solidifies into a foam material with various properties, including insulation, cushioning, and structural support.
Continuous foaming machines are commonly used in industries such as furniture manufacturing, automotive, construction, and insulation production. The foaming density is 7~60Kg/m3.
The product has the advantages of low production cost and excellent and stable foam quality. It adopts a touch screen control system with high degree of automation and more flexible operation. Users can store various formulas, and can also adjust the formulas at any time, so that the control of production costs is more scientific and intuitive.
It is suitable for the production of foam in furniture, bust, shoe materials, electronics, packaging, clothing, aviation, automobile industry and building insulation materials. It is the most ideal production equipment for large foam factories.
Continuous foaming machine consists of three parts:
Parameter Name | Data |
---|---|
Maximum output | 300KG/Min |
Mixing Head Power | 37KW |
Max Mixing Speed | 2000-6000r/min |
Foaming method | liquid laydown and trough |
Foaming Size | W2300*H1300 (Width Adjust) |
Control System | PLC touch screen system or electrical cabinet system |
Chain Plate Size | L24m*H1.3m |
Fall plate | L7.1M*W1.35-2.35(width adjustable) |
Pulling System | 1set |
Buttom paper system | 1set |
Cool Chilling machine | 1*20HP |
Foaming Density | 6 -70kg/M³ |
Block Cutter | 1set |
Total Power | Approx130KW |
Machine Floor Size | L45m*W5m*H4.5m |
