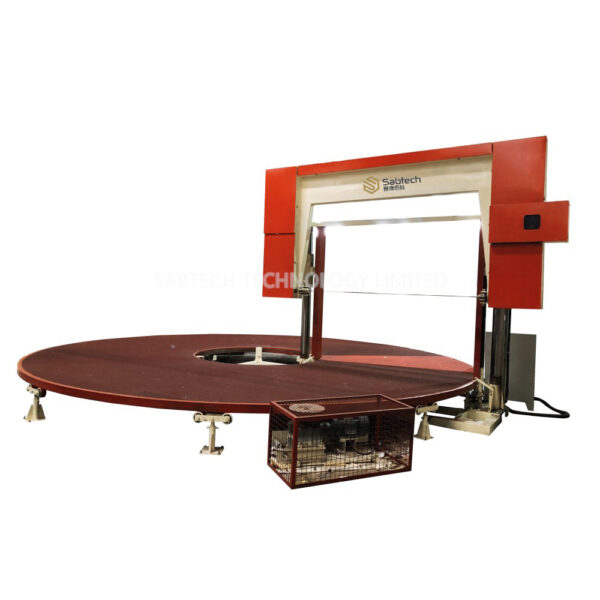

Carousel foam cutting machine

Brief Introduction

Carousel foam cutting machine is mainly used to put multiple foam blocks on the workbench and finish cutting work at the same time. Automatic digital control is used to cut the required foam thickness by setting the value of the control box. The table can be rotated back and forth, and the rotation speed can be set arbitrarily. This machine can cut continuously, which makes the production efficiency higher. Adopting the current advanced imported frequency conversion speed regulation control technology, the cutting is accurate and the reliability is high. (The workbench can also increase the suction device.)

Overview Of The Product

Carousel foam cutting machine consists of the following parts:

• Carousel foam cutting machine is composed of disc table, machine base, blade holder, electric control device and other components.

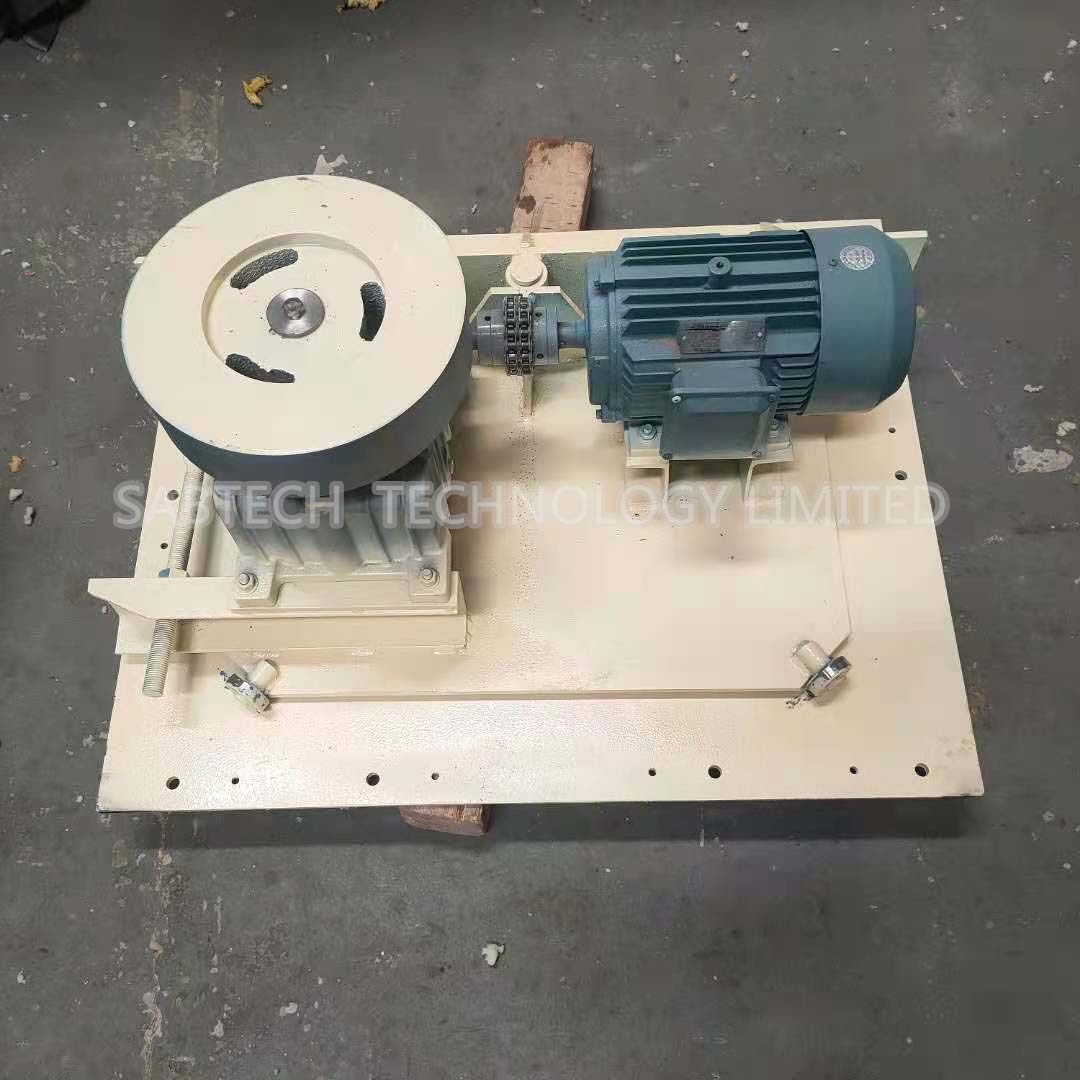

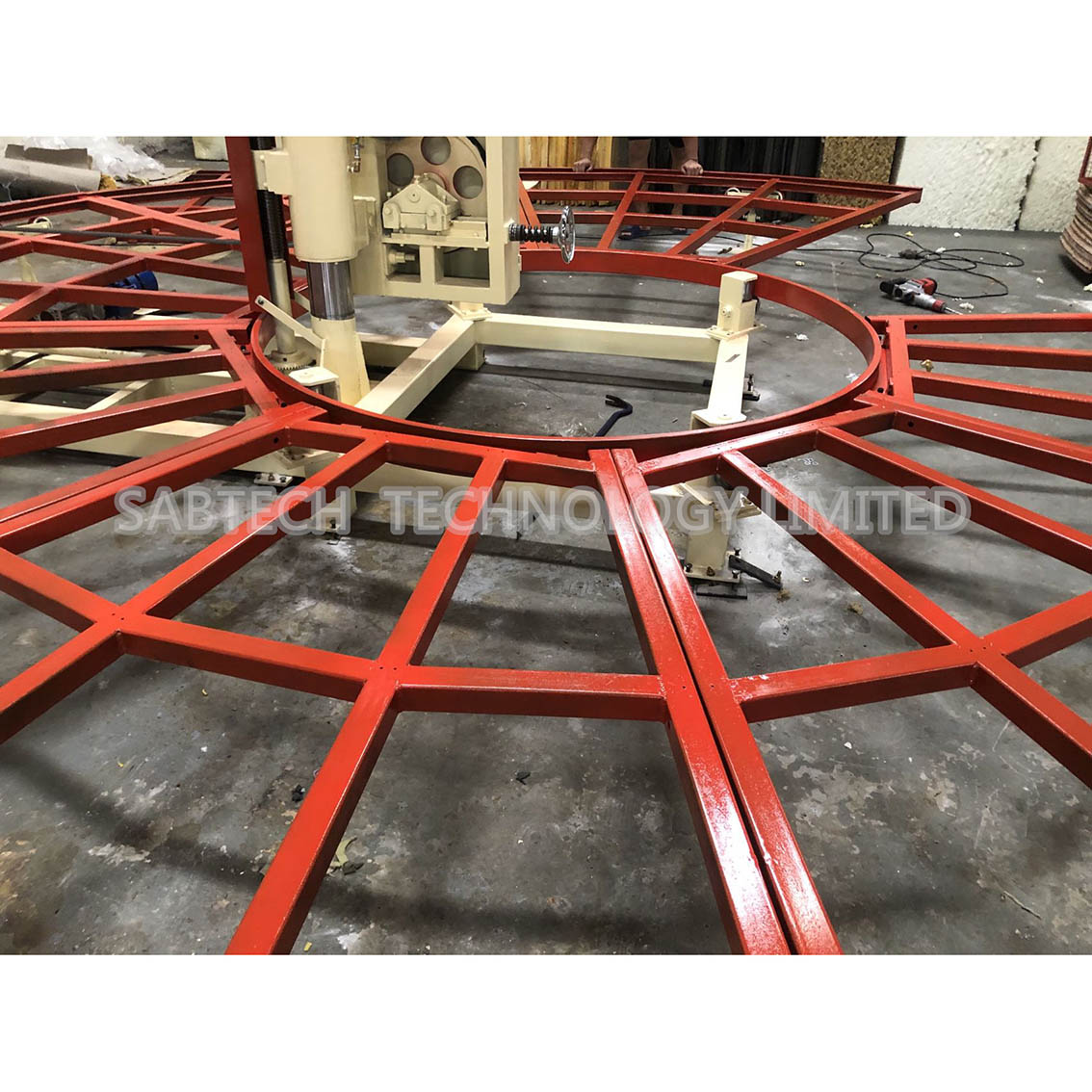

• The disc table is composed of motor, worm gear reducer WPO-100 (m=5 I=20), friction wheel, disc platform, roller, positioning ring, square base and so on.
• The base is composed of a base, a column, a sliding sleeve, a screw, a nut, a brake motor, a worm gear reducer RV75 (m=3 I=20), a transmission shaft, and a bevel gear.
• The blade holder is mainly composed of blade wheel, blade belt, blade sharpening device, blade belt inclination mechanism, blade holder body, blade box, and blade cover.

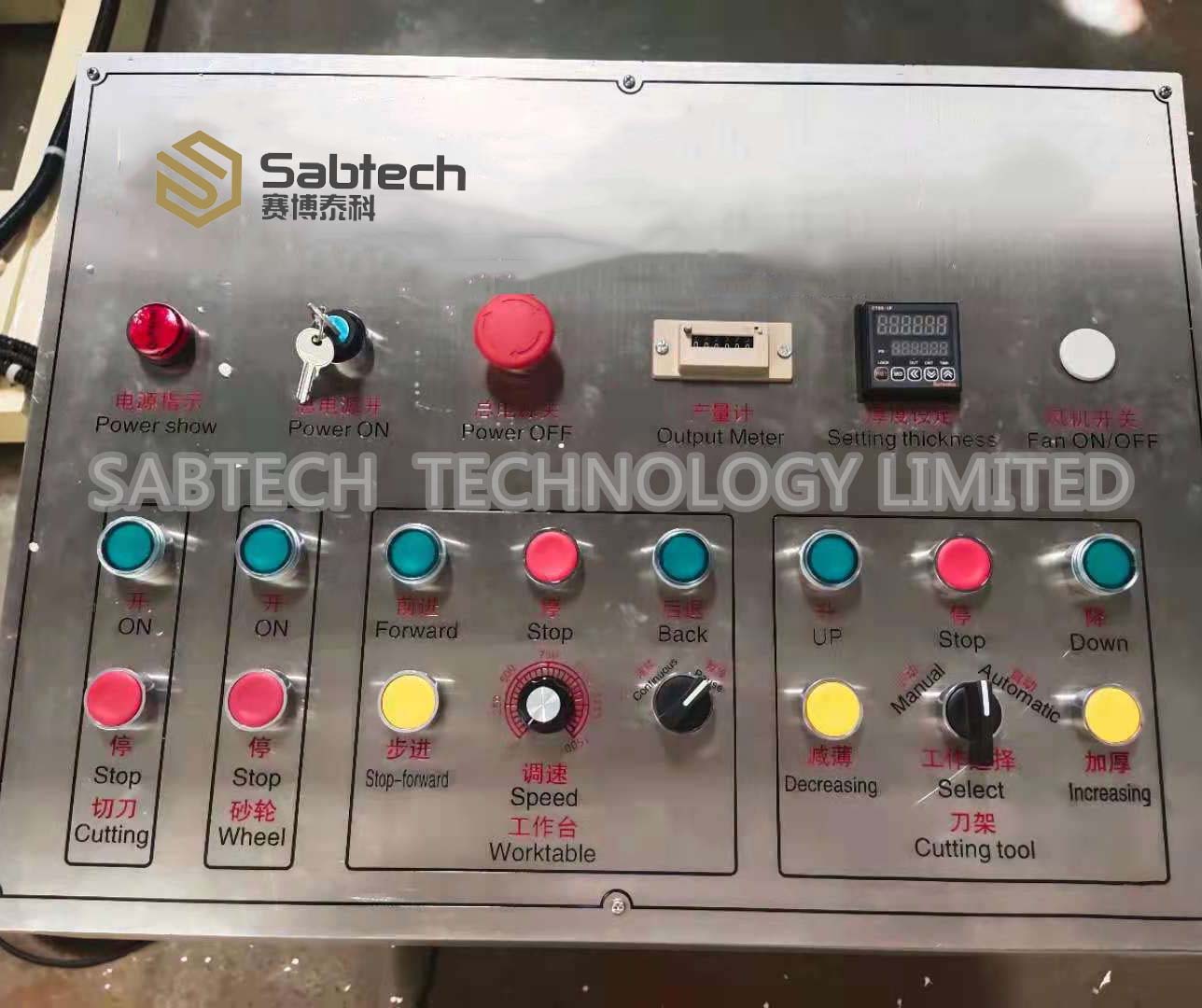

• The electric control device mainly includes the electric control operation box.

Main Technical Specification

Model NO.	SABHCC-60	SABHCC-73	SABHCC-100
Cutting Foam Size(W*L*H)	1500*2000*1200MM * 4Pcs	1500*2000*1200MM*5Pcs	1500*2000*1200MM*9Pcs
Max Cutting Foam Size (W*l*H)	1500*2000*1200MM *4Pcs	2150*3000*1200MM*3Pcs	2150*4500*1200MM*3Pcs
Worktable Turning Speed	0-3.5R per min	0-3R per min	0-2Rpermin
Blade Length	L8940mm	L10000mm	L10240mm
Worktable Diameter (Ø)	6m	7.3m	10.5m
Cutting Thickness	2-150mm	2-150mm	2-150mm
Total Power	8.92KW	9.52KW	11.92KW
Machine Weight	3300Kgs	3500Kgs	3800Kgs
Overall Size(L*W*H)	6900*6000*2400mm	7900*7000*2400mm	11500*10500*2400mm

Machine Highlights

• Widely used in quantity foam cutting, easy operation.
• Vaccum system built in which can effectively keep the foam on the plateform which garantees the cutting accuracy.
• Two blade holders can be added which can improve the cutting accuracy for soft foam cutting.
• Custmized requirements are welcome.
• OEM design is welcome.
