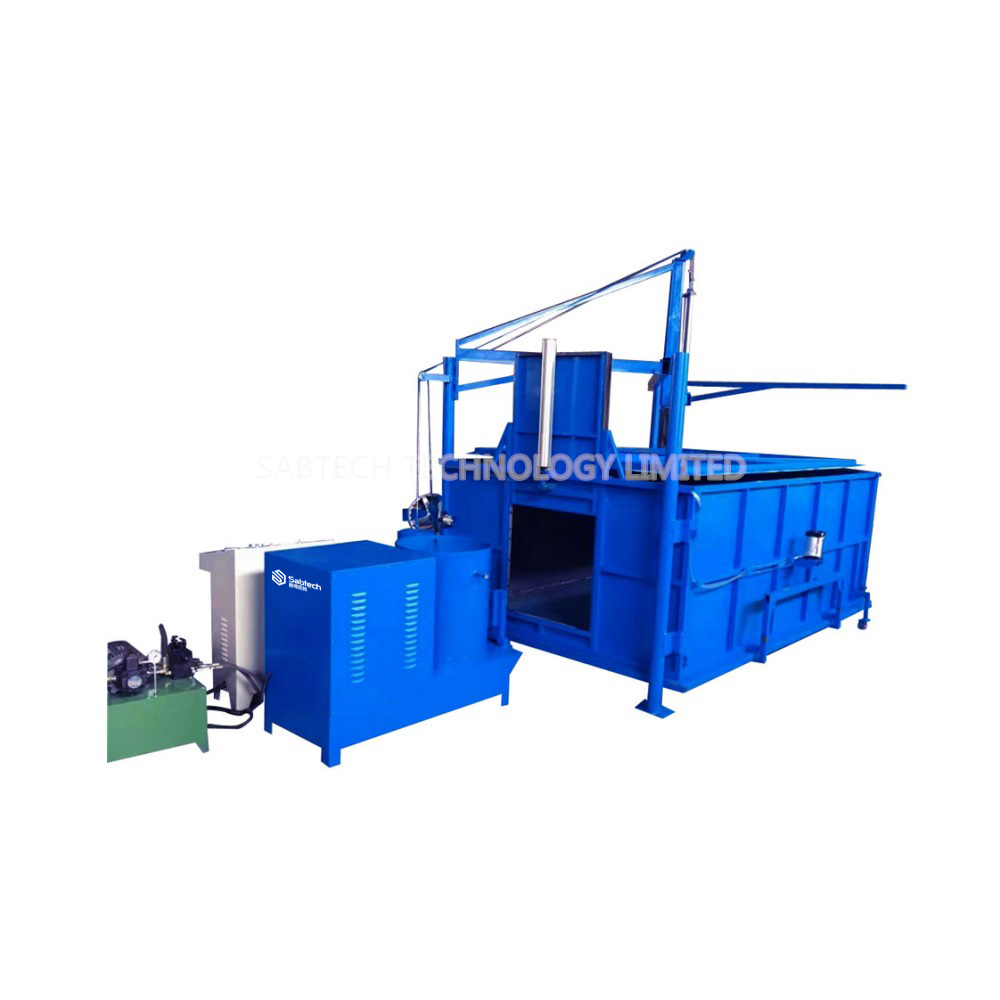

Batch foam machine

Batch foam machine is used for mixing, stirring and foaming of foam raw materials. It is the supporting equipment for small batch production of foam.

PRODUCT DETAILS

Brief Introduction

Batch foam machine is used for mixing, stirring and foaming of foam raw materials. It adopts frequency conversion speed regulation control device. The raw materials in the foaming barrel are stirred by the high-speed rotating blades to make them fully mixed to produce a complete chemical reaction, then will be immediately poured into the mold and foamed into finished foam blocks. The high-speed section of the machine is equipped with timing automatic control function and automatic electronic brake device, which makes the machine have the advantages of high-speed frequency conversion, easy operation and better foaming quality. It is the supporting equipment for small batch production of foam.

Overview Of The Product

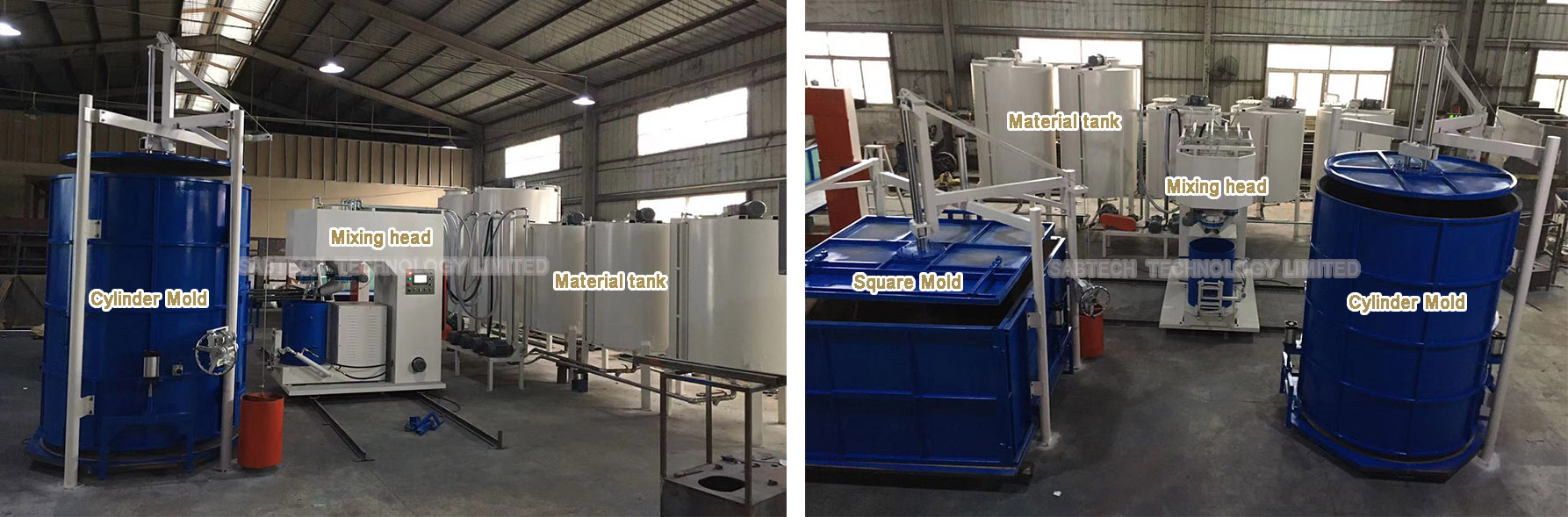

Batch foam machine consists of three parts:

  • Material tank
  • Mixing head

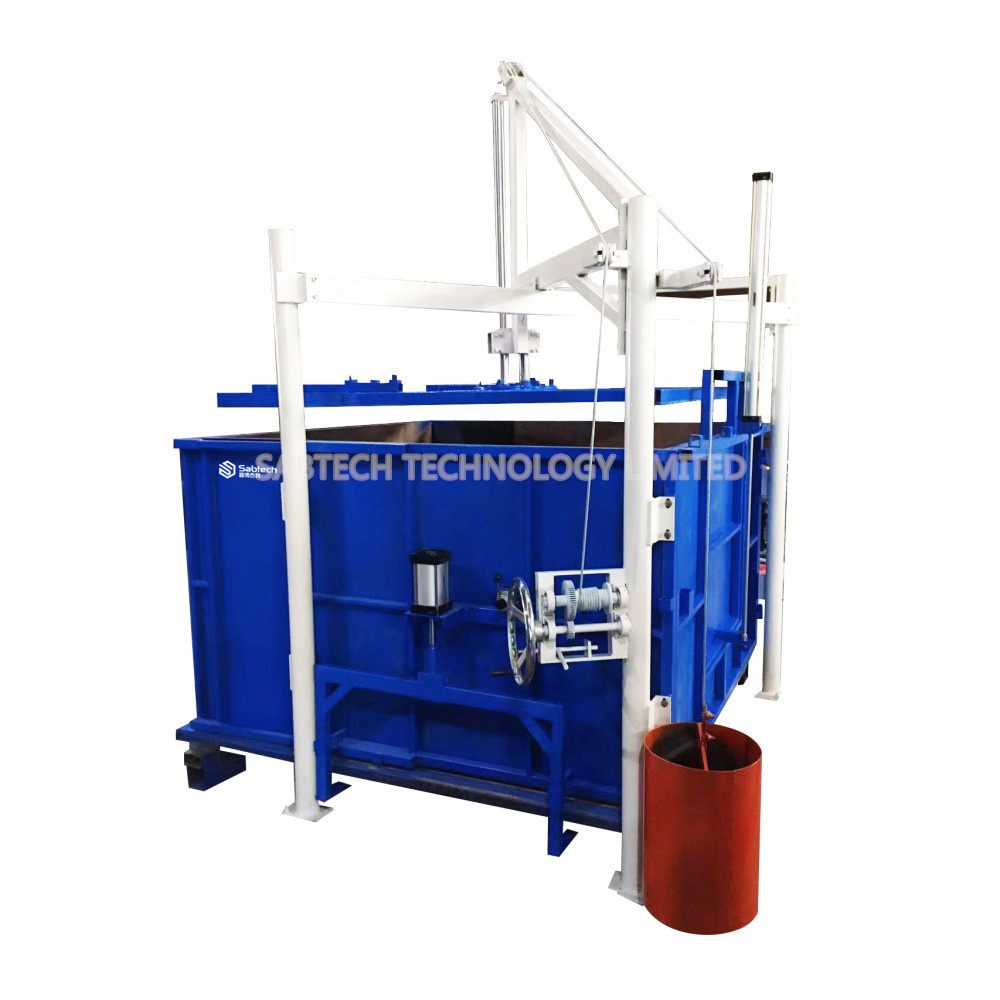

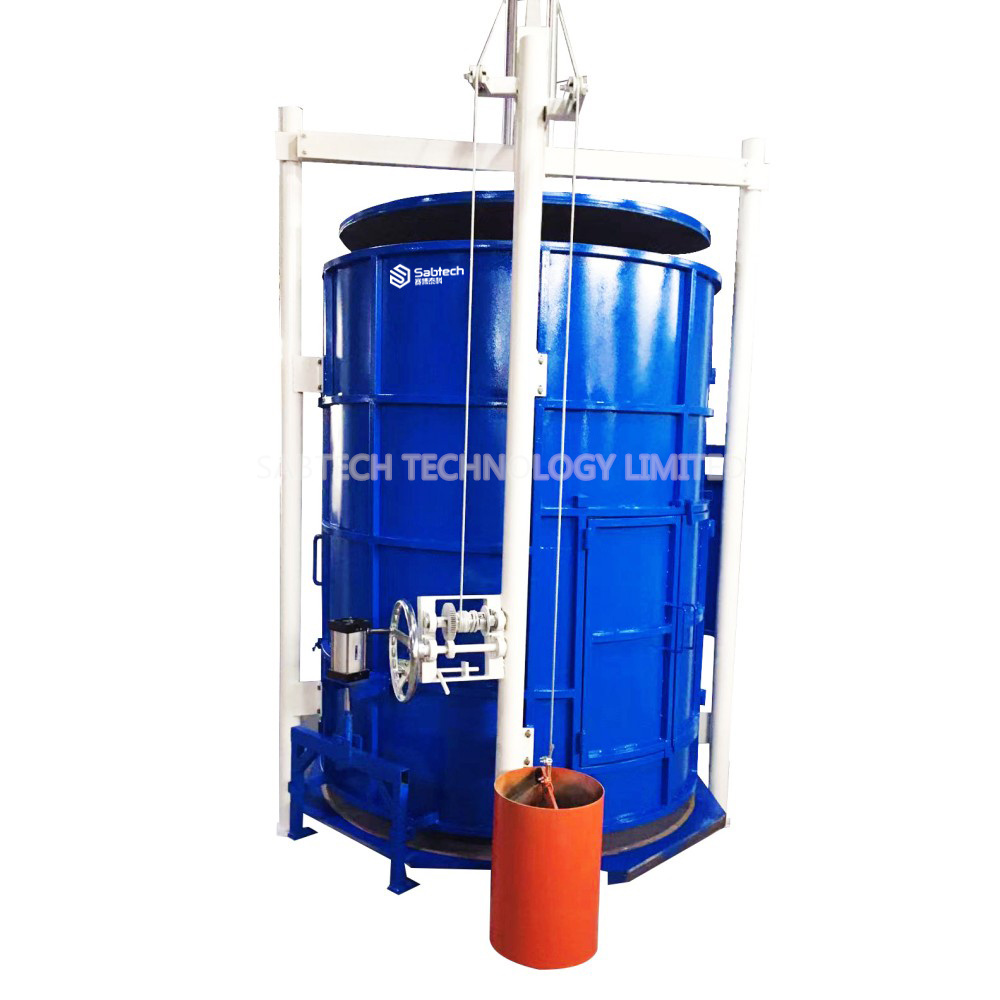

  • Mold(Cylinder/Square mold)

batch foam machine

Main Technical Specification

ModelSAB-BF01SAB-BF02SAB-BF03
Mixing Drum100L 1PC130L 1PC130L Dia 550*H700m 1PC100L Dia 5008H700 1PC
Foaming Density6-60kg/Mm36-60kg/Mm36-60kg/Mm3
Foaming MouldCustomizedCustomizedCustomized
Cylinder / Square available
Material TankNO3 Tank5 Tank
Material FeedingFull Manuallybig Material (TDI ,PG ,POp) fedding by pump. Small additives add by handbig Material (TDI PPG1 ,PPG2,POP1,POP2) fedding by pump. Small additives add by hand
PLC ControlNOYESYES
Cooling MachineNOYesYes ,1*5HP
Advantage/disadvantageCheaper /But more wasteNormal Pu Foam availablePU foam /Memory Foam /HR Foam

Machine Highlights

  • More affordable investment for smaller quality foaming prodution
  • More various using field: PU foam, memory foam, HR foam, hard PU foam, super soft PU foam etc
  • Multiple choices for the foaming moulding boxes.
  • OEM Design Service are welcome.
